PANASONIC PT-FRZ60 LASER DLP INSTALLATION PROJECTOR REVIEW

May 15, 2021 / By Art Feierman
Panasonic-PT-FRZ60

The Panasonic PT-FRZ60 is an installation class DLP laser projector with WUXGA (1,920 x 1,200) resolution and rated brightness of 6,000 lumens. The PT-FRZ60 uses a laser/phosphor wheel light engine, rated to deliver 20,000 hours of low maintenance operation.

The PT-FRZ60 offers a 2.0x zoom lens (throw ratio 1.46 to 2.94:1) and a large amount of vertical and horizontal lens shift for convenient installation flexibility. Of course, the PT-FRZ60 has all the connections you would expect on a better business/education class projector including HDMI 2.0 and DIGITAL LINK (HDBaseT) port.

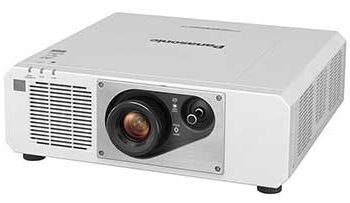

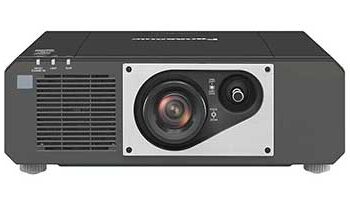

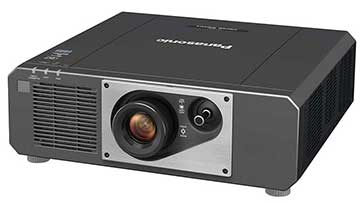

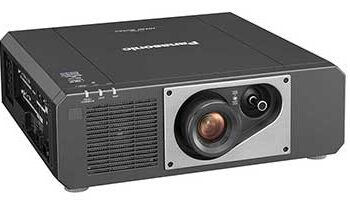

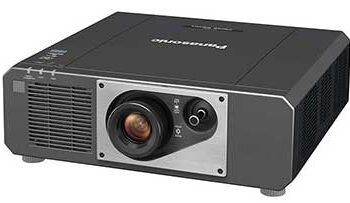

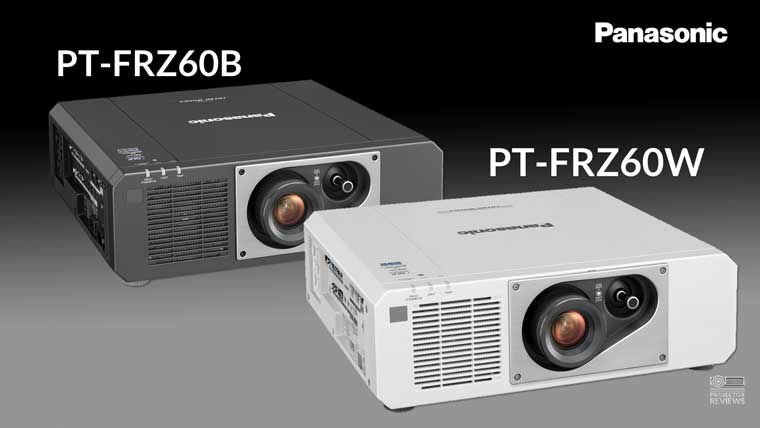

The PT-FRZ60 is available in a black chassis (PT-FRZ60BU) and a white chassis (PT-FRZ60WU).

Highly Recommended
Panasonic PT-FRZ60BU Specs
Price $4,299
Technology DLP
Native Resolution 1920 x 1200
Brightness (Manufacturer Claim) 6000
Contrast 20,000:1
Zoom Lens Ratio 1.46 to 2.94:1
Lens Shift Yes
Lamp Life 20,000 hours (Full Power @ 50% brightness drop)
Weight 35.5 lb
Warranty 3 years (Illumination parts is 3 year or 12,000 hours whichever comes first)

Overview

The Panasonic PT-FRZ60 is a 6,000-lumen WUXGA installation projector with a laser/phosphor light engine that is rated for 20,000 hours of low maintenance operation. The PT-FRZ60 features a single DLP (0.67” DMD) chip and Panasonic claims the unit can deliver a dynamic contrast ratio of 20,000;1.

For enhanced installation flexibility, the PT-FRZ60 is equipped with 2.0x zoom and ample horizontal and vertical lens shift. The PT-FRZ60 is part of Panasonic’s FRZ Series of WUXGA installation laser projectors which also includes the 5200-lumen PT-FRZ50 and the 5000-lumen short throw PT- FRZ55. All three models are housed in a similar chassis (approx. 19-5/8” W × 6-5/8” H 19-3/8” D) and weigh between 35 to 36 pounds each. The two main differentiators between the three models are brightness and lens type.

ModelPT-FRZ60PT-FRZ50PT-FRZ55
Brightness (ANSI)600052005000
Zoom Range2.0x2.0xFixed
Throw Ratio1.46 – 2.94:11.46 – 2.94:10.8:1
Vertical Lens+64%, -44% (Manual)+64%, -44% (Manual)+/- 4.4% (powered)
Horizontal Lens Shift+34%, -27% (Manual)+34%, -27% (Manual)+/- 2.1% (powered)

The PT-FRZ60 has all the connections you would expect to find on a high-end installation projector including dual HDMI as well as a DIGITAL LINK/LAN (HDBaseT) input. While the PT-FRZ60 is a WUXGA projector, it can accept up to 4K@60P content via its HDMI and DIGITAL LINK terminals (HDBaseT) for better integration into systems containing a 4K flat panel display. If the signal is split between the projector and a 4K display, the 4K TV will receive the highest resolution possible.

Like most Panasonic projectors we have reviewed in the past, the PT-FRZ60 produced a bright, accurate looking image. Its great picture, combined with its high build quality and installation flexibility, are the reasons why if you're looking for an installation projector in this price range, PT-FRZ60 should be on your shortlist.

Highlights

  • 6,000 ANSI lumens
  • $4,299 street price
  • Laser Light Engine – Light output life for half brightness up to 20,000 hours (normal)
  • WUXGA Resolution (1920 x 1200)
  • Supports 4K@60P via HDMI or DIGITAL LINK (HDBaseT) terminals
  • DLP (0.67” DMD) technology
  • 20,000:1 Dynamic Contrast Ratio
  • Vertical and horizontal lens shift provides excellent mounting flexibility
  • Advanced Networking is standard, wireless is optional (PressIT)
  • DIGITAL LINK (HDBaseT) for transmitting video over long distances via low cost CAT5e or higher standards
  • Filter-less Dust Resistant Optical Block
  • Network monitoring and control software and Early Warning Software
  • 360-degree front and side body-rotation
  • 3-year warranty
