Sony VPL-VW285ES Calibration Presets Notes

Sony has included 9 calibration presets (Cinema Film 1, Cinema Film 2, Reference, TV, Photo, Game, Bright Cinema, Bright TV & User) on the VPL-VW285ES. By default, all of them have the lamp set to high. Thing is, they are all basically the same when you adjust their settings to the same values, except for a few subtle differences. Lumen output was also very similar with Reference actually measuring the highest, not Bright Cinema or Bright TV – go figure.

Eric provides a lot more information on the Advanced Calibration page along with all the color management system (CMS) calibration settings for our subscribers.

Note: The projector had over 103 Hours on the bulb before calibrated and measured.

Best Mode Calibration for 1080p and REC709 - Reference

I performed my dark room calibration, “Best Mode” (for non-HDR, non-BT.2020), using Reference mode with low lamp. Without calibration and all the adjustments set to their default settings, Reference looked and measured quite well with DeltaE measuring 1 to just over 3 in the mid/lower IRE range. White balance was close to D65 and with the gamma setting set to off, it tracked a decent 2.2 curve. The BT.709 color gamut was also tracking quite good with some of the colors oversaturated just a little.

Sony VPL-VW285ES Reference Mode CIE Chart Pre-Calibration
Sony VPL-VW285ES Reference Mode CIE Chart Pre-Calibration
IREPre-CalibrationPost-Calibration
10 IRE6565K6565K
20 IRE6541K6408K
30 IRE6623K6438K
40 IRE6694K6671K
50 IRE6582K6606K
60 IRE6536K6534K
70 IRE6459K6483K
80 IRE6490K6564K
90 IRE6475K6454K
100 IRE6579K6540K & 1024 Lumens

Measured at low lamp, mid-zoom.

Average Gamma Pre-Calibration: 2.30

Average Gamma Post-Calibration: 2.43 (target 2.40)

[sam_pro id=1_39 codes="true"]

TypePre-CalibrationPost-Calibration
Color TempD65D65
GammaOff2.4
ContrastMax95
Brightness5052
Color5050
Hue5050
Sharpness1015
Contrast EnhancerOffOff
MotionflowTrue CinemaTrue Cinema
TypePre-CalibrationPost-Calibration
Reality CreationOnOn
DatabaseNormalNormal
Resolution2020
Noise Filtering300
Smooth GradationOffOff
Clear WhiteOffOff
x.v. ColorOffOff
Color SpaceBT.709BT.709
Input Lag ReductionOffOff
RGBGainBias
Red- 23- 4
Green0- 5
Blue0- 5

Greyscale calibration settings for Reference Mode.

Sony VPL-VW285ES Reference Mode CIE Chart Post-Calibration
Sony VPL-VW285ES Reference Mode CIE Chart Post-Calibration

Brightest mode calibration for 1080p and REC709 – Cinema Film 1

Next up I did my bright room calibration using the Cinema Film 1 preset with the lamp set to bright. This combination did not yield quite as good as Reference mode did on low lamp. I had the biggest issue with my target gamma of 2.10 and after trying different setting combinations I ended up using Color Temp: custom color 3 & gamma 7. White balance was pretty good pre-calibration as well as BT.709 color gamut. Pre-calibration, DeltaE hovered in the 2-4 range.

[sam_pro id=1_38 codes="true"]

Sony VPL-VW285ES Cinema Film 1 Mode CIE Chart Pre-Calibration
Sony VPL-VW285ES Cinema Film 1 Mode CIE Chart Pre-Calibration
IREPre-CalibrationPost-Calibration
10 IRE6611K6531K
20 IRE6704K6531K
30 IRE6741K6600K
40 IRE6658K6550K
50 IRE6443K6586K
60 IRE6584K6550K
70 IRE6608K6512K
80 IRE6509K6489K
90 IRE6777K6494K
100 IRE6859K6686K & 1557 Lumens

Mode measured at full brightness with the lens at mid-zoom.

Average Gamma Pre-Calibration: 2.02

Average Gamma Post-Calibration: 2.16 (target 2.20)

[sam_pro id=1_36 codes="true"]

TypePre-CalibrationPost-Calibration
Color TempCustom 3Custom 3
GammaGamma 7Gamma 7
ContrastMax98
Brightness5050
Color5050
Hue5050
Sharpness3015
Contrast EnhancerLowOff
MotionflowTrue CinemaTrue Cinema
TypePre-CalibrationPost-Calibration
Reality CreationOnOn
DatabaseNormalNormal
Resolution5020
Noise Filtering400
Smooth GradationLowOff
Clear WhiteOffOff
x.v. ColorOffOff
Color SpaceColor Space 3BT.709
Input Lag ReductionOffOff
RGBGainBias
Red- 20
Green- 20
Blue- 40

Greyscale calibration settings for Cinema Film 1 Mode.

[sam_pro id=1_65 codes="true"]

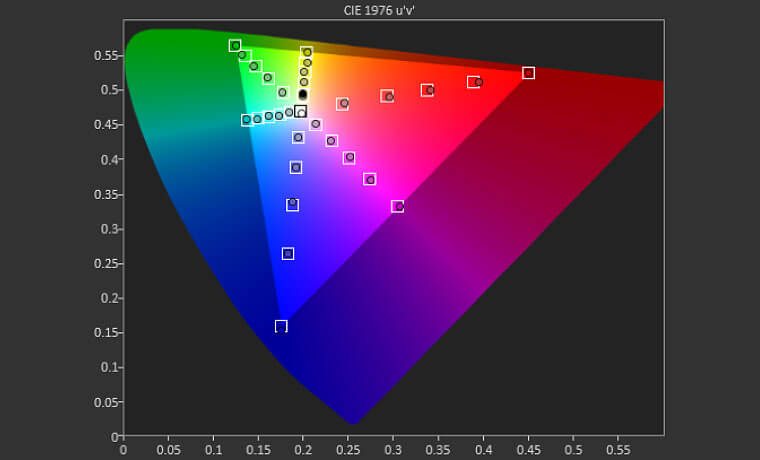

Sony VPL-VW285ES Cinema Film 1 Mode CIE Chart Post-Calibration
Sony VPL-VW285ES Cinema Film 1 Mode CIE Chart Post-Calibration

4K with HDR, BT.2020 “Best Mode” – Cinema Film 2

My last calibration was for 4K/HDR. For this mode, I used Cinema Film 2 with lamp on high. While in any mode the projector will detect a 4K signal and set the contrast to 60, separate from wherever you had it set for HD/1080p. It also removes many of the adjustment settings you have with HD/1080p such as gamma. This allows you to use the same picture mode you used for 1080p content. I, however, chose to use a different mode (Cinema Film 2).

[sam_pro id=1_41 codes="true"]

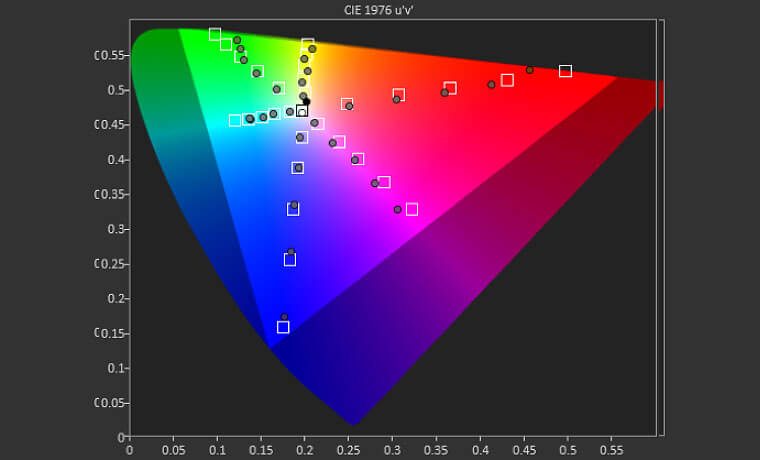

Sony VPL-VW285ES Cinema Film 2 Mode CIE Chart Pre-Calibration
Sony VPL-VW285ES Cinema Film 2 Mode CIE Chart Pre-Calibration
IREPre-CalibrationPost-Calibration
10 IRE6332K6378K
20 IRE6978K6734K
30 IRE6695K6578K
40 IRE6729K6650K
50 IRE6690K6442K
60 IRE6585K6546K
70 IRE6614K6900K
80 IRE6690K6689K
90 IRE6681K6678K
100 IRE6689K6675K & 1608 Lumens

Mode measured at full brightness with the lens at mid-zoom, Custom 3 preset.

[sam_pro id=1_39 codes="true"]

TypePre-CalibrationPost-Calibration
Color TempCustom 3Custom 3
GammaN/AN/A
Contrast6080
Brightness5050
Color5050
Tint5050
Sharpness3010
Contrast EnhancerLowOff or Low
Reality CreationOnOn
TypePre-CalibrationPost-Calibration
DatabaseNormalNormal
Resolution5020
Noise Filtering4030
Smooth GradationLowOff
Clear WhiteOffOff
x.v. ColorOffOff
HDRAutoAuto
Color SpaceBT.2020BT.2020
Input Lag ReductionOffOff
RGBGainBias
Red- 20
Green- 20
Blue- 40

Greyscale calibration settings for Cinema Film 2 Mode

After trying to improve the 4K / HDR color I decided it was best to leave color correction off.

[sam_pro id=1_38 codes="true"]

Sony VPL-VW285ES Cinema Film 2 Mode CIE Chart Post-Calibration
Sony VPL-VW285ES Cinema Film 2 Mode CIE Chart Post-Calibration
